Probe: OMNI-TERS-FM-Ag


Price:
Sale price€650

Description

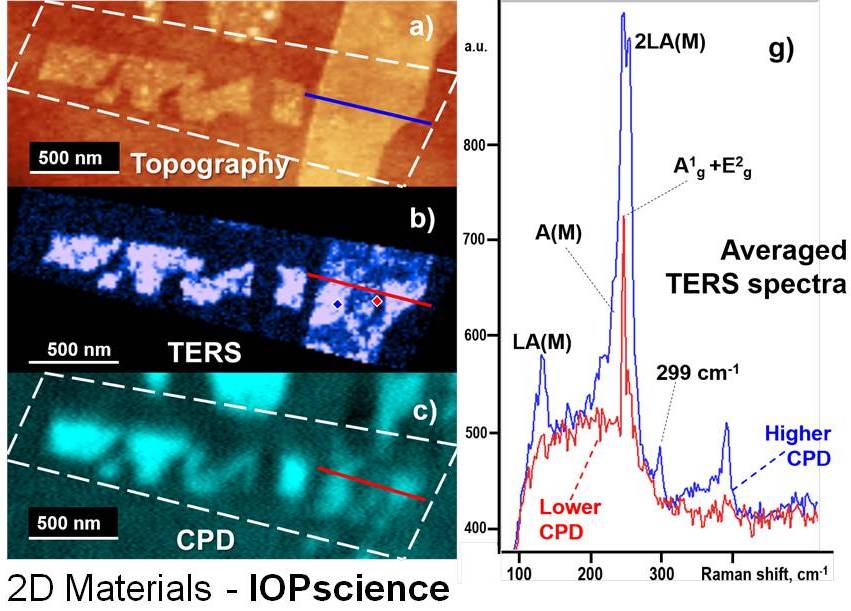

OmniTM Tip Enhanced Raman Spectroscopy (TERS) probes designed to acquire topography and enhanced Raman spectral information of a sample simultaneously.

Raman active layer: Ag with protective layer.

Set of 3 probes.

This probes are compatible with XploRA Nano, LabRAM Nano, OmegaScope and TRIOS systems. They are nanofabricated using highly doped single crystal silicon with unparalleled reproducibility, robustness and sharpness for consistent high resolution imaging capabilities.



Unique features of these  probes include:

  • Allows all modes of TERS operation –Transmission and Reflection  (from top and side accesses.
  • Compatible with HORIBA AFM-RAMAN systems.
  • Ag probes are shipped in inert gas package with proprietary probe box for enhanced tip shelf life.

Tip Specifications

Shape

Triangular Pyramid

Height  (µm)

10 - 16

TERS Coating

Ag





Parameter

Value

Nominal

Minimum

Maximum

Spring Constant (N/m)

2.7

0.8

10.0

Frequency (kHz)

60

30

100

Length (µm)

245

225

265

Width (µm)

50

43

57

Thickness (µm)

2.8

1.8

3.8



Ordering Information

Part Number

Probes

OMNI-TERS-FM-Ag

3



Contact us

If you have any further questions, please contact us using our contact us form available here: Contact us.

Notes

  1. The specification range is guaranteed. The values of spring constant and frequency are calculated using mathematical formulation.
