DD-ACCESS-NC-A

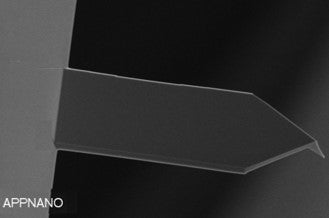

DD-ACCESS-NC-A are probes with doped diamond film on a stiff cantilever with tip view probe. Theses probes are designed for hard contact EFM studies like SSRM as well as other Contact/Tapping or Non-contact EFM techniques like C-AFM, TUNA, SCM, PFM, electrostatic force microscopy, KPFM, etc.
They are nanofabricated using highly doped single crystal silicon with unparalleled reproducibility and robustness.
Quantity: a set of 5 tips.
Compatibility:
Unique features of these probes include:
Compatible for colocalized AFM/Raman-PL.
Compatible for electrical measurements.
|
Tip specification
|
|
ROC (nm)
|
100-300
|
|
Height (μm)
|
14-16
|
|
Shape
|
Pyramidal
|
|
Coating
|
Doped Diamond
|
|
Cantilever specification
|
|
Material
|
Si
|
|
Shape
|
Rectangular
|
|
Reflex side coating
|
Al
|
|
Parameter
|
Nominal
|
Min
|
Max
|
|
Length (µm)
|
150.0
|
130.0
|
170.0
|
|
Width (µm)
|
54.0
|
52.0
|
56.0
|
|
k (N/m)
|
93
|
34
|
243
|
|
f (kHz)
|
320.0
|
201.0
|
508.0
|
|
Thickness (µm)
|
5.50
|
4.50
|
6.50
|
